Technical Specifications:
|
Item |
Tracer 1206AN |
Tracer 2206AN |
Tracer 1210AN |
Tracer 2210AN |
Tracer 3210AN |
Tracer 4210AN |
|
System nominal |
12V/24VDC Auto |
|||||
|
Rated charge current |
10A |
20A |
10A |
20A |
30A |
40A |
|
Rated discharge |
10A |
20A |
10A |
20A |
30A |
40A |
|
Battery voltage range |
8~32V |
|||||
|
Max. PV open circuit voltage |
46V |
92V |
||||
|
MPP voltage range |
(Battery voltage +2V)~36V |
(Battery voltage +2V)~72V |
||||
|
Max. PV input power |
130W/12V |
260W/12V |
130W/12V |
260W/12V |
390W/12V |
520W/12V |
|
Self-consumption |
<=12mA |
|||||
|
Discharge circuit voltage drop |
<=0.23V |
|||||
|
Temperature compensate coefficient |
-3mV/°C/2V (Default) |
|||||
|
Grounding |
Common negative |
|||||
|
RS485 interface |
5VDC/100mA |
|||||
|
LCD backlight time |
60S (Default) |
|||||
|
Environmental Parameters |
||||||
|
Working environment temperature |
-25°C~+50°C(100% input and output) |
|||||
|
Storage temperature range |
-20°C~+70°C |
|||||
|
Relative humidity |
<=95%, N.C. |
|||||
|
Enclosure |
IP30 |
|||||
|
Dimension |
172x139 x 44mm |
220x154x 52mm |
172x139 x 44mm |
220x154x 52mm |
228x164x55mm |
252x180x63mm |
|
Mounting dimension |
130x130mm |
170x145mm |
130x130mm |
170x145mm |
170x164mm |
210x171mm |
|
Terminal |
12AWG(4mm 2 ) |
6AWG(16mm 2 ) |
12AWG(4mm 2 ) |
6AWG(16mm 2 ) |
6AWG(16mm 2 ) |
6AWG(16mm 2 |
|
Recommended cable |
12AWG(4mm 2 ) |
10AWG(6mm 2 ) |
12AWG(4mm 2 ) |
10AWG(6mm 2 ) |
8AWG(10mm 2 ) |
6AWG(16mm 2 ) |
|
Weight |
0.57kg |
0.94kg |
0.57kg |
0.94kg |
1.26kg |
1.65kg |

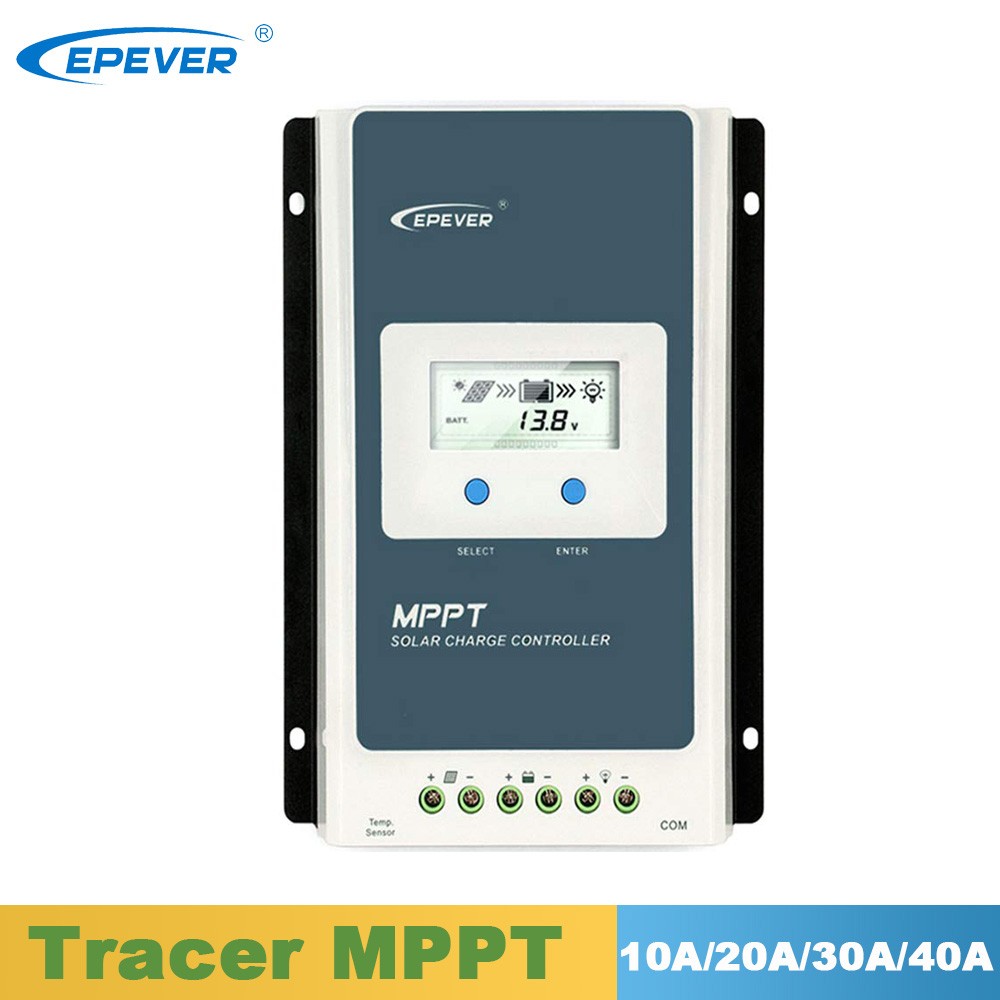

The Tracer AN series. Based on common negative design and advanced MPPT control algorithm, with LCD displaying running status, this product is artistic, economical and practical. Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method. The limitation function of the charging power and current and reducingcharging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements.
